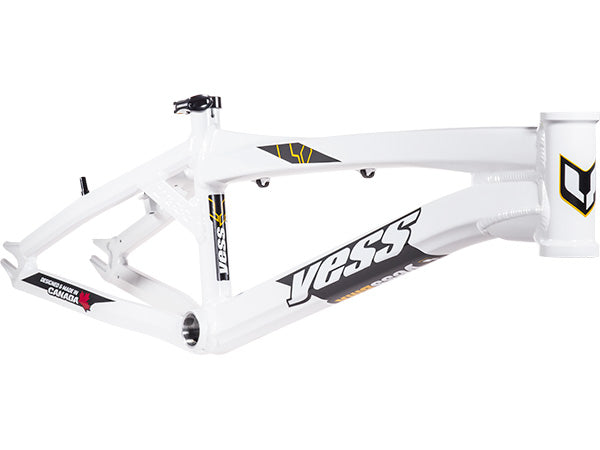

About This Product: Yess Type X BMX Race Frame-White


The YESS 2016 BMX race frame has got to be one of the stiffest aluminum frames we have seen to date.  If you are looking for quality and performance the YESS frames are just that.  The frames are handmade in Canada featuring CNC machined integrated head tube, machined bottom bracket, hydroformed tubing and increased welding surface for added stiffness.  Includes the YESS quick release clamp and 15mm CNC machined dropouts with 3/8" (10mm) adapters and tensioners.

FEATURES:
*Race-proven geometry
*Custom hydroformed tube set

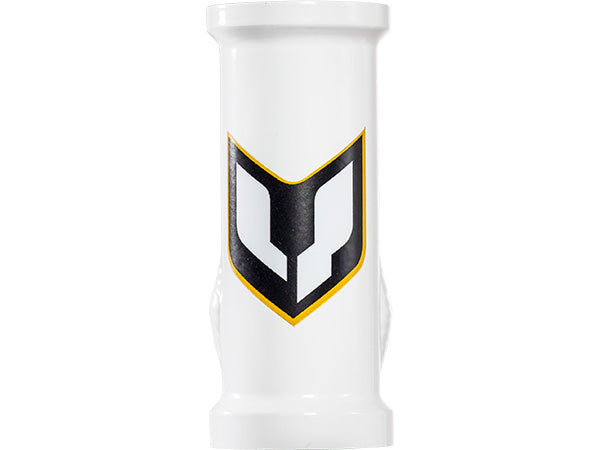

*CNC machined integrated headtube
*CNC machined bottom bracket

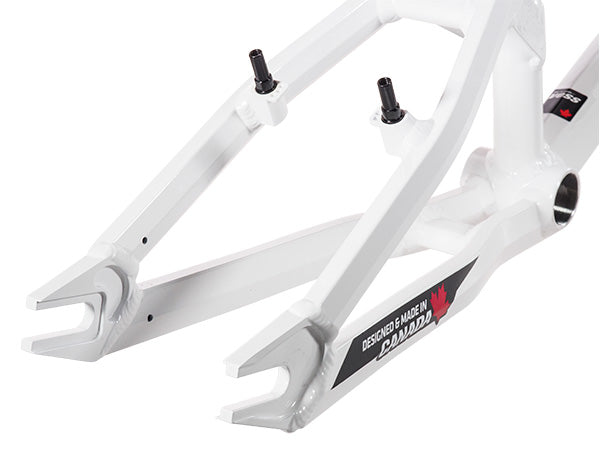

*CNC machined 15mm dropouts

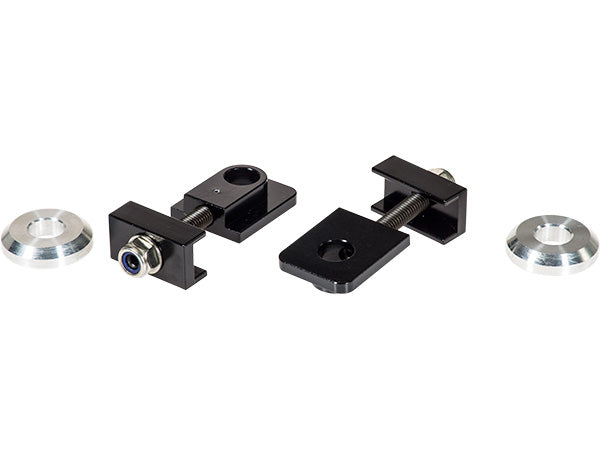

*3/8" (10mm) adapters and tensioners
*Custom chainstays for added stiffness
SPECS:
SEAT POST: Mini - Expert (22.2mm). Pro and larger (27.2mm)
SEAT CLAMP: Mini - Expert (1" (25.4mm)). Pro and larger (1-1/4" (31.8mm))
USE: Race
MATERIAL: 6061 aluminum
HEADSET STYLE: Mini - Expert (1 1/8" Integrated; use a Step-Down Headset if you plan to run a 1" fork). Pro and larger (1-1/8" Integrated)
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle
SIZE
 TT
  RIDER AREA CS
 HEADSET HA SA WEIGHT
JUNIOR 18.25"  18.75" 12.5" 1-1/8" Integrated 73° 68° 2lbs 9oz
EXPERT 19"  19.5" 12.5" 1-1/8" Integrated 73° 68° 2lbs 10oz
PRO MINUS
 19.75" 20.25" 14" 1-1/8" Integrated 74° 68° 3lbs 7oz
PRO
 20.5"  21" 14" 1-1/8" Integrated 74° 68° 3lbs 8oz
PRO XL
 21.25"  21.5" 14.5" 1-1/8" Integrated 74° 68° 3lbs 10oz
PRO XXL 21.75"  22" 14.5" 1-1/8" Integrated 74° 68° 3lbs 11oz
PRO XXXL 22.5"  22.75" 14.5" 1-1/8" Integrated 74° 68° 3lbs 12oz
PRO 24" 20.375"  21.625"  15"  1-1/8" Integrated  73.5° 68°  3lbs 9oz
PRO XL 24"
  21.375" 22.5"  15"  1-1/8" Integrated 73.5°  68° 3lbs 10oz
PRO XXL 24" 22.25"  23"  15.5"  1-1/8" Integrated 73.5°  68°  3lbs 12oz



Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
