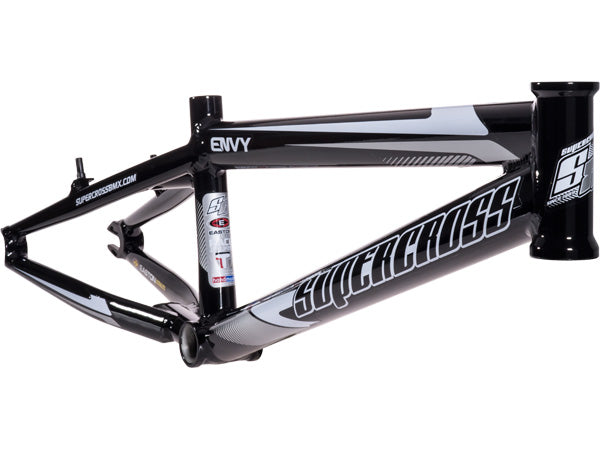

Supercross Envy V3 BMX Race Frame-Gloss Black

Supercross
Sold Out

About This Product: Supercross Envy V3 BMX Race Frame-Gloss Black

The Supercross Envy V3 Frame - New colors and decals for 2013 season. These frames are handbuilt from custom SPECS Easton ULTRA LIGHT RACE 7005 Taperwall tubeset with race proven geometry.  The Supercross ENVY Pro frames start at only 2.75 lbs....that's light!

NEW FEATURES FOR 2013:
*New 15mm rear dropout with 10mm adapters included
*New butted and tapered chainstay and seatstays for improved power transfer and stiffness
*New Bulge butted seatmast for improved bottom bracket stiffness

NOTE: Mini thru Expert frames now come with 1 1/8" headtube.  Use a "step-done" headset for use with 1" forks

CARRYOVER FEATURES:

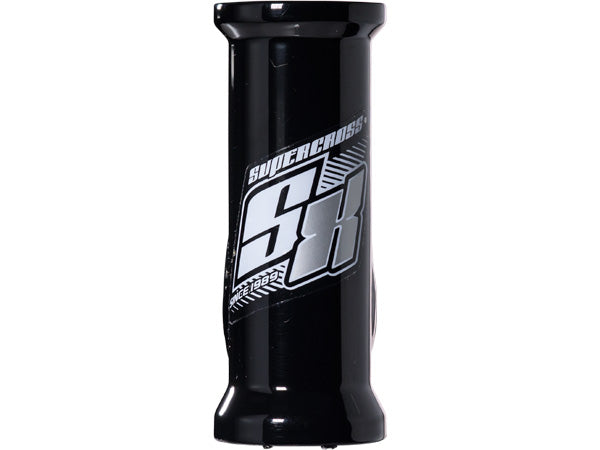

*Integrated Campy style 45/45 headtube - requires Integrated headset with 45/45 angle
*CNC Machined Euro bottom bracket shell

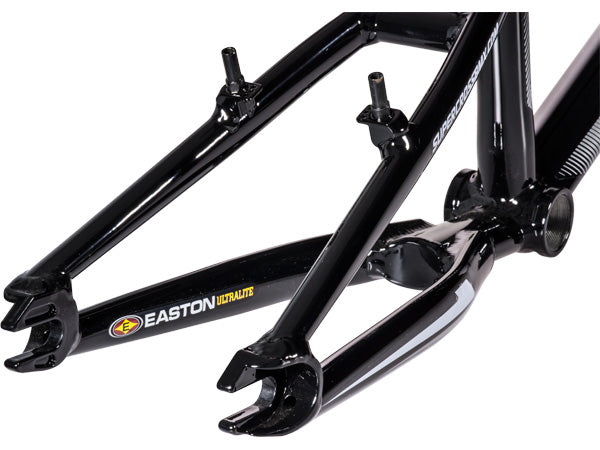

*Backside CBC'd 3D shaped dropouts
*Exclusive custom-butted and shaped taperwall downtube
*Flipped teardrop taperwall toptube
*Tapered chain and seat stays

SEAT POST / SEAT CLAMP SPECS:
Mini - Expert:  22.2mm post, 1" clamp (25.4mm)
Expert XL - Expert XXL:  25.4mm post, 1 1/8" clamp (28.6mm)
All Pro Frames:  27.2mm, 1 1/4" clamp (31.8mm)

USE: Race
MATERIAL: 7005 aluminum
HEADSET STYLE: 45°/45° Integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle

GEOMETRY SPECS:
SIZE
 TT
 CS
 HEADSET HA SA BB HEIGHT WEIGHT
MINI
 17.5" 12.25" 1"- 1 1/8" 72° --- 10.5" 2lbs 1oz
JUNIOR 18.5" 13.2" 1"- 1 1/8" 73.5° --- 10.75" 2lbs 2oz
JUNIOR PLUS
 19" 13.2" 1"- 1 1/8" 73.5° --- 10.75" 2lbs 3oz
EXPERT 19.5" 13.75" 1"- 1 1/8" 74.5° --- 10.8" 2lbs 5oz
EXPERT XL 20" 14" 1 1/8" 74.5° --- 11.35" 2lbs 6.5oz
EXPERT XXL 21" 14" 1 1/8" 74.5° --- 11.7" 2lbs 8.8oz
PRO 20.5" 15" 1 1/8" 74.5° --- 11.65" 2lbs 12oz
PRO PLUS
 20.75" 15" 1 1/8" 74.5° --- 11.65" 2lbs 13oz
PRO XL 21.25" 15.25" 1 1/8" 74.5° --- 11.65" 2lbs 14.8oz
PRO XXL 21.75" 15.25" 1 1/8" 74.5° --- 11.65" 2lbs 15.8oz
JUNIOR 24 19.5" 14.4" 1" 73.5° --- 11.25" 2lbs 2oz
EXPERT 24
 20.5" 15" 1" 73.5° --- 11.5" 2lbs 8.8oz
PRO SHORT 24
 20.5" 14.75" 1 1/8" 73.5° --- 11.65" 2lbs 13oz
PRO 24
 21.5" 15.35" 1 1/8" 73.5° --- 11.65" 2lbs 15.8oz
PRO XL 24 22" 15.35 1 1/8" 73.5° --- 11.65" 3lbs 1.2oz

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
