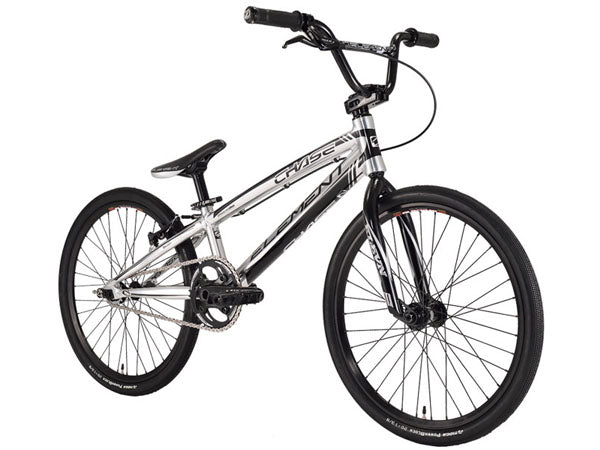

Chase Element BMX Bike-Expert-Polished - 1

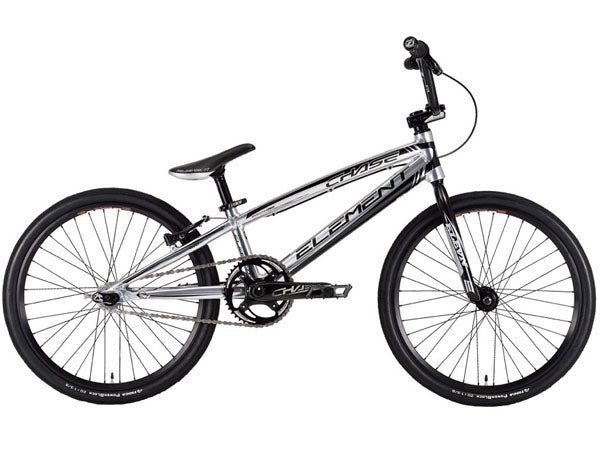

Chase Element BMX Bike-Expert-Polished - 2

Chase Element BMX Bike-Expert-Polished

Sold Out

About This Product: Chase Element BMX Bike-Expert-Polished

PRODUCT DETAILS

The Chase Bicycles Element Expert complete BMX bike features the Chase 7005 T6 frame, Element 2-pc hollow alloy cranks, sealed Element cassette hubs and Elevn 20mm fork.

FRAME SPECS:
Top tube Length: 20"
Chainstay Length: 13.5”
Headtube Angle: 73°
Seattube Angle: 70°

Recommended Rider Height
: 4' 10" - 5' 4"

FRAME: Chase Element Expert 7005 T6 Alloy Polished, Integrated Head Tube, 1-1/8", Water Decals
FORK: Elevn PUL 20mm Cr-mo Fork, 1-1/8" Steer Tube With Tapered, Butted, Heat Treated, Alloy Top Cap
HEADSET: FSA Impact Integrated Sealed Bearing
HANDLEBAR: Chase Element Bar 5.75" Rise, 8° Back Sweep & 2° Up Sweep
GRIPS: Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM: Chase Element 45mm 6061 T6 Alloy Laser Etched Logo
BB: Outboard BB Cups BC 1.37"x68/73mm Cartridge Bearings
CHAINRING: Kingstar 42 Tooth 4 Bolts 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK: Chase Element 2 Pieces Crank 165mm Hollow Alloy Arm, 4 Bolts Spider, Cr-mo Pedal Inserts, Laser Etched Logo, Alloy Chain Ring Bolts and Nuts
PEDAL: Platform Pedal 9/16"
CHAIN: KMC Z610HX 1/2"x3/32"
COG: 16 Tooth
FRONT HUB: Chase Element 20mm Thru Axle Hub, 36H, Sealed Bearing
REAR HUB: Chase Element 10mm Cassette Hub 36H, Sealed Bearing, Steel Cassette Body, 4 Pawl, 96 Points Of Engagement
SPOKES: 14 Gauge
NIPPLES: Brass Nipples
FRONT RIM: Sun Rims Front 36H 1-3/8" With Eyelet
REAR RIM: Sun Rims Rear 36H 1-3/8" With Eyelet
FRONT TIRE: Tioga PowerBlock 1-3/8"
REAR TIRE: Tioga PowerBlock 1-3/8"
TUBES: 20×1-3/8"
BRAKE LEVER: Shimano Deore LX
BRAKE CALIPER: Shimano Deore LX
SADDLE: Chase Element Pivotal, Embossed Leather, Hollow Bolt
SEAT POST: Chase Element Pivotal 27.2mm 320mm Polished Alloy Laser Etched Logo
SEAT CLAMP: Chase Element QR Alloy 31.8mm Laser Etched Logo
CHAIN TENSIONNER: Kingstar Twin Hole Laser Etched Logo

WEIGHT:    18.9lbs / 8.57kgs

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode 026181
Special Shipping Group N/A

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.
